50L Single Glass Reactor

5-100L Single glass reactor,Multifunctional glass reactor Brief Introduction: Single glass reactor inner placed reaction solvent which can be stirred, interlayer can be filled with cold or hot liquid(frozen liquid, water, gas or hot oil) to

    5-100L Single glass reactor,Multifunctional glass reactor

    Brief Introduction of single layer reactor:

    Single glass reactor inner placed reaction solvent which can be stirred, interlayer can be filled with cold or hot liquid(frozen liquid, water, gas or hot oil) to do the thermostatic heating/cooling reaction, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.

    Working principle of single layer reactor:

    Under the condition for setting the constant temperature, in a closed glass container, at atmospheric pressure or negative pressure by stirring, reaction, it can control the reaction solution's evaporation and reflux.

    Product Features of single layer reactor:

    1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;
    2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;
    3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;
    4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;
    5. Casters with brake fixed, it is convenient and reliable for mobile use;
    6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;
    7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;
    8. Integral structure is scientific design and beautiful appearance, convenient for operation;
    9. Explosion-proof series available.
    ( We can add the cooling coil and an anti-explosion device according to user's needs)

    Technical parameters of single layer reactor:

    Model

    NB-5

    NB-10

    NB-20

    NB-30

    NB-50

    NB-80

    NB-100

    Stirring Power(W)

    40W

    90W

    90W

    90W

    120W

    120W

    120W

    Rotational Speed(rpm)

    1000

    600

    600

    600

    600

    600

    600

    Stirring Shaft Diameter(mm)

    Φ8

    Φ12

    Φ12

    Φ12

    Φ12

    Φ12

    Φ12

    Heating Power(W)

    2000

    3000

    3000

    3000

    7000

    7000

    7000

    Power Supply(V/Hz)

    220V/50Hz,110V/60Hz(can be customized)

     Remark: This product is for civilian use only

    Matched instruments:

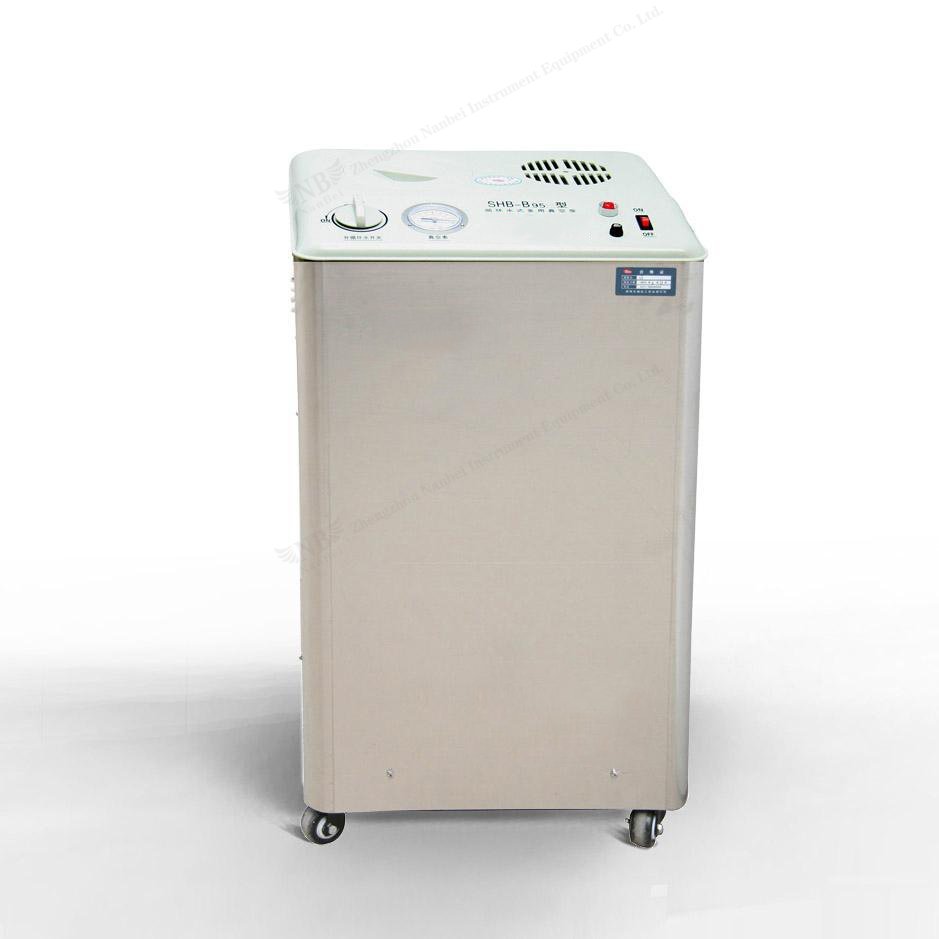

    Cooling instrumentHeating instrumentVacuum pump

    More details, pls click hereMore details, pls click hereMore details, pls click here
